Engine Speed Sensor -G28-, REMOVING AND INSTALLING: Removing

-- Remove the engine cover. Refer to ENGINE COVER, REMOVING AND INSTALLING .

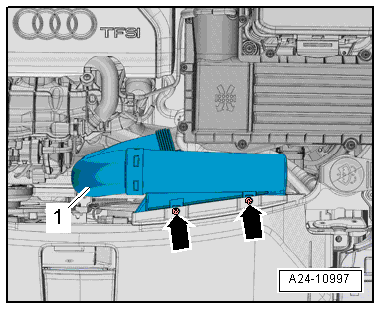

-- Remove the bolts -arrows- and remove the air guide with the air guide pipe -1-.

-- Open the air guide pipe hose clamp -2-.

-- Remove the bolt -4-.

-- Disconnect the connector -arrow-.

-- Remove the noise insulation. Refer to Noise Insulation, Removing And Installing .

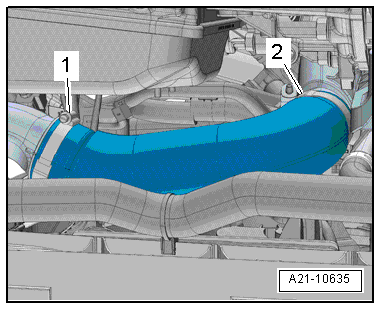

-- Remove the air guide hose by loosening the hose clamps -1 and 2-.

-- Remove the bolt -1- and remove the air guide hose downward from the Throttle Valve Control Module -J338-.

-- Disconnect the connector -1- from the Engine Speed Sensor -G28-.

-- Remove the Engine Speed Sensor -G28- bolt.
