Electronic Damping Control Module Connector End View (J250, T47A)

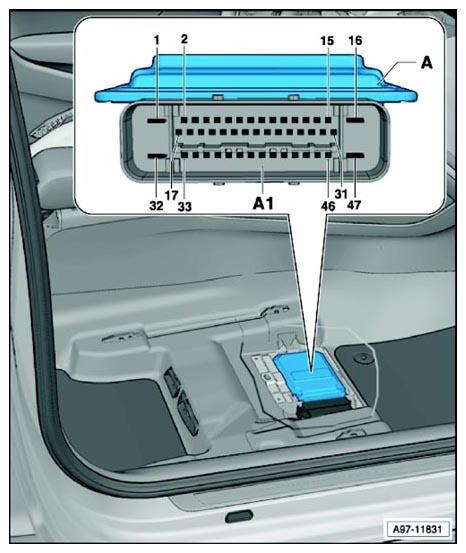

Fig 1: Electronic Damping Control Module Connector End View (J250, T47a)
Courtesy of AUDI OF AMERICA, LLC
A
Electronic Damping Control Module -J250-
A1
47-Pin Connector -T47a-, black
