Component Location Overview - Windshield Wiper System

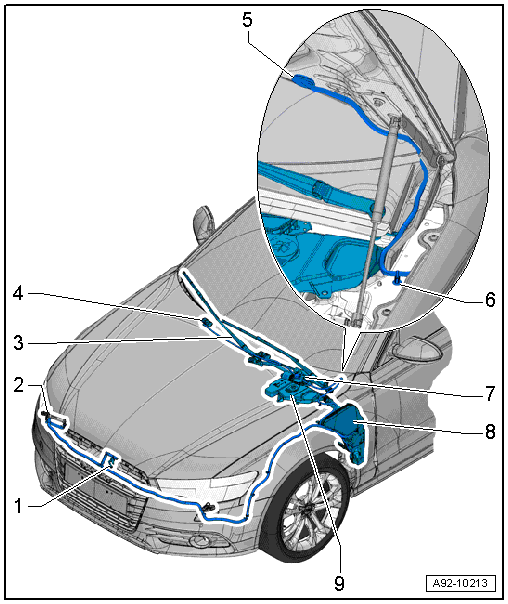

Fig 1: Components Location Windshield Wiper System

Courtesy of AUDI OF AMERICA, LLC

1. Night Vision System Camera -R212- Washer Nozzle
   • Overview. Refer to OVERVIEW - HEADLAMP WASHER SYSTEM .
2. Headlamp Washer System Washer Nozzle
   • Overview. Refer to OVERVIEW - HEADLAMP WASHER SYSTEM .
3. Windshield Wiper Arm
   • Overview. Refer to OVERVIEW - WINDSHIELD WIPER SYSTEM .
4. Washer Nozzle
   • Overview. Refer to OVERVIEW - WINDSHIELD WASHER SYSTEM .
5. Grommet
   • For the washer fluid hose in the front lid
6. Grommet
   • For the windshield washer fluid hose on the fender
7. Windshield Wiper Motor -V-
   • With the Wiper Motor Control Module -J400-
   • Overview. Refer to OVERVIEW - WINDSHIELD WIPER SYSTEM .
8. Washer Fluid Reservoir
   • Overview. Refer to OVERVIEW - WINDSHIELD WASHER SYSTEM .
9. Filler Neck
   • For the washer fluid reservoir
   • Overview. Refer to OVERVIEW - WINDSHIELD WASHER SYSTEM .
