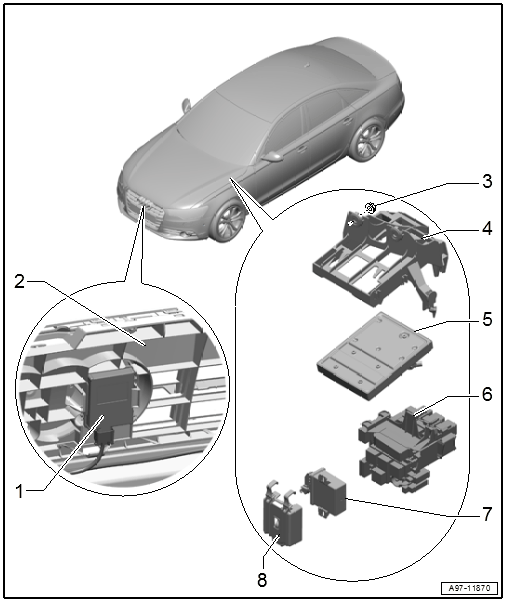

Component Location Overview - Control Modules
- Garage Door Opener Control Module -J530-
- Removing and installing. Refer to GARAGE DOOR OPENER CONTROL MODULE, REMOVING AND INSTALLING .
- Radiator Grille
- Nut
- 3 Nm
- Quantity: 2
- Mount
- For the Vehicle Electrical System Control Module -J519- and relay panel
- Removing and installing. Refer to RELAY PANEL MOUNT, REMOVING AND INSTALLING, UNDER DRIVER SIDE INSTRUMENT PANEL, Vehicle Electrical System Control Module -J519- .
- Vehicle Electrical System Control Module -J519-
- Removing and installing. Refer to Vehicle Electrical System Control Module -J519-, REMOVING AND INSTALLING .
- Relay Panel under the Driver Side Instrument Panel
- Headlamp Range Control Module -J431-
- Mount
- For the Headlamp Range Control Module -J431-
