Vehicle Dynamics Control Module (VDM): Removal

WARNING: This page is about a different car, the 2018 Lincoln Navigator. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Electronic modules are sensitive to static electrical charges. If exposed to these charges, damage may result.

NOTE: Removal steps in this procedure may contain installation details.

NOTE: The current PMI process must begin with the current VDM installed. If the current VDM does not respond to the diagnostic scan tool, the tool may prompt for As-Built Data as part of the repair.

Using a diagnostic scan tool, begin the PMI process for the VDM following the on-screen instructions.
If Equipped. Remove the IPMB. Refer to: Image Processing Module B (IPMB) .

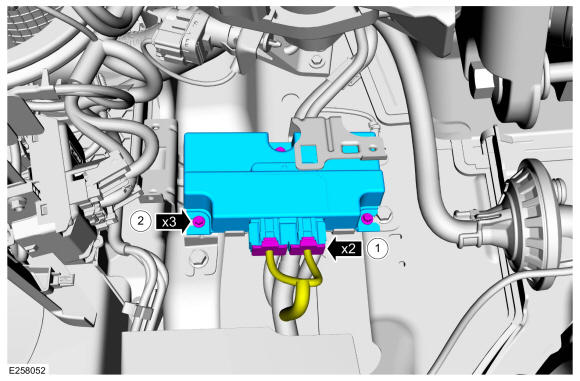

NOTE: The VDM is mounted to the LH kick panel under the instrument panel.
1. Disconnect the VDM electrical connectors.
2. Remove the VDM screws and remove the VDM.
  Torque: 28 lb.in (3.2 Nm)
