Washer Nozzle For Laser Distance Regulation Control Module, Removing And Installing: Removing
WARNING: This page is about a different car, the 2021 Audi e-tron Quattro and 2019 Audi e-tron Quattro. However, it is still accessible from the selected car via links, so may be relevant.
-- Remove the front bumper cover. Refer to BUMPER COVER, REMOVING AND INSTALLING .

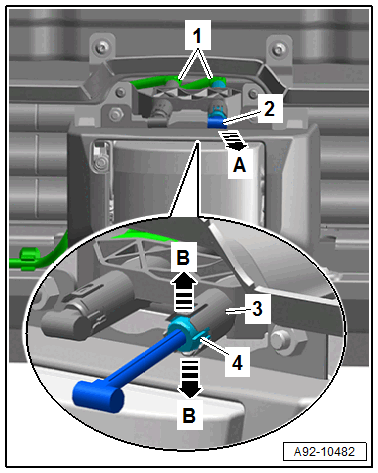

-- Release the clips and remove the washer fluid hoses -1-.
-- Pull the telescoping washer nozzle -2- out slightly in direction of -arrow A- and hold it in place.
-- Release the catches in direction of -B arrows-.
-- Remove the washer nozzle -4- from the mount -3-.
