Washer Nozzle Mount For Laser Distance Regulation Control Module, Removing And Installing: Removing

WARNING: This page is about a different car, the 2021 Audi e-tron Quattro and 2019 Audi e-tron Quattro. However, it is still accessible from the selected car via links, so may be relevant.

-- Remove the front bumper cover. Refer to BUMPER COVER, REMOVING AND INSTALLING .

-- Release the side retainers in direction of -A arrows-.

Courtesy of AUDI OF AMERICA, LLC

-- Release the lower retainer -1- in direction of -arrow B-.

-- Remove the trim -2-.

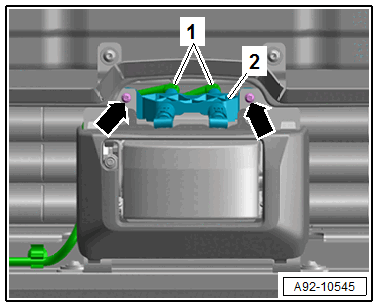

-- Remove the screws -arrows-.

Courtesy of AUDI OF AMERICA, LLC

-- Remove the mount -2- toward the right side of the vehicle.

-- Release the clips and remove the washer fluid hoses -1-.
