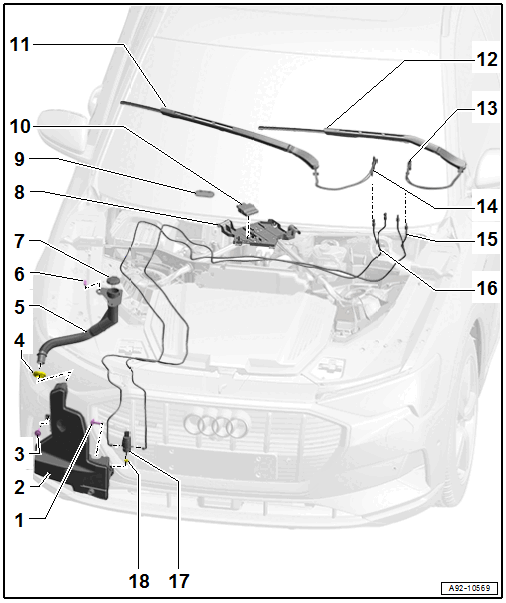

Overview - Windshield Washer System

WARNING: This page is about a different car, the 2021 Audi e-tron Quattro and 2019 Audi e-tron Quattro. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of AUDI OF AMERICA, LLC

Bolt
- 7 Nm
Washer Fluid Reservoir
- Removing and installing. Refer to WASHER FLUID RESERVOIR, REMOVING AND INSTALLING .
Bolt
- 7 Nm
Grommet
- Replace if damaged.
Filler Neck
- For the washer fluid reservoir
- Removing and installing. Refer to WASHER FLUID RESERVOIR FILLER NECK, REMOVING AND INSTALLING .
Expanding Rivet
- Quantity: 2
Cap
- For the filler neck
Bracket
- For Windshield Washer Pump Control Module -J1100-
Blind Cover
- Quantity: 2
Windshield Washer Pump Control Module -J1100-
- Removing and installing. Refer to Windshield Washer Pump Control Module -J1100-, REMOVING AND INSTALLING .
Right Washer Nozzle
- With Thermal Resistor 1 in Front Passenger Side Windshield Wiper Arm -Z141-
- Integrated in the windshield wiper arm and cannot be replaced separately if faulty
- Windshield Wiper Arm, Replacing. Refer to WINDSHIELD WIPER ARMS, REMOVING AND INSTALLING .
- Adjusting. Refer to WASHER NOZZLES, ADJUSTING .
Left Washer Nozzle
- With Thermal Resistor 1 in Driver Side Windshield Wiper Arm -Z139-
- Integrated in the windshield wiper arm and cannot be replaced separately if faulty
- Windshield Wiper Arm, Replacing. Refer to WINDSHIELD WIPER ARMS, REMOVING AND INSTALLING .
- Adjusting. Refer to WASHER NOZZLES, ADJUSTING .
Washer Fluid Hose
- To the washer nozzles in the windshield wiper arm
Washer Fluid Hose
- To the washer nozzles in the windshield wiper arm
Washer Fluid Hose
- From the window washer pump
Washer Fluid Hose
- From the window washer pump
Windshield Washer Pump -V5-
- Removing and installing. Refer to WINDSHIELD WASHER PUMP, REMOVING AND INSTALLING .
Grommet
- Replace if damaged.
