Electronic Steering Column Lock Control Module -J764-, REMOVING AND INSTALLING: Installing

WARNING: This page is about a different car, the 2017 Volkswagen Touareg, 2016 Volkswagen Touareg, and 2015 Volkswagen Touareg. However, it is still accessible from the selected car via links, so may be relevant.

Install in reverse order of removal. Note the following:

If only the Electronic Steering Column Lock Control Module -J764- was replaced, use the previously used control module bolt.
If the steering column was replaced, the Electronic Steering Column Lock Control Module -J764- is already installed on the new steering column.

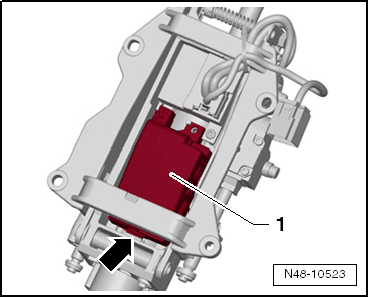

-- Install the Electronic Steering Column Lock Control Module -J764- -1- with the pin in the groove -arrow- in the steering column.

Fig 1: Identifying Electronic Steering Column Lock Control Module -1-

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Tighten the bolt.

NOTE:

If the same steering column and the same Electronic Steering Column Lock Control Module -J764- are being installed, then it is not necessary to adapt the Electronic Steering Column Lock Control Module -J764- again.

If the Electronic Steering Column Lock Control Module -J764- was replaced, then it must be reprogrammed.

If the steering column is replaced, the Electronic Steering Column Lock Control Module -J764- is already installed on the new steering column and does not need to be modified.

If the steering column with an Electronic Steering Column Lock Control Module -J764- was replaced, the Electronic Steering Column Lock Control Module -J764- must be adapted.

Use the Vehicle Diagnostic Tester.

Body

01_OBD-capable systems

05_Access and start authorization - J393

09_Access and start authorization functions

Tightening Specification

Component	Tightening Specification
Electronic Steering Column Lock Control Module -J764- to steering column	5 Nm
