Power Adjustable Steering Column Control Module -J866-, REMOVING AND INSTALLING: Removing
WARNING: This page is about a different car, the 2017 Volkswagen Touareg, 2016 Volkswagen Touareg, and 2015 Volkswagen Touareg. However, it is still accessible from the selected car via links, so may be relevant.
-- Remove the steering column. Refer to STEERING COLUMN, REMOVING AND INSTALLING .
-- Release and disconnect the connector -1-.

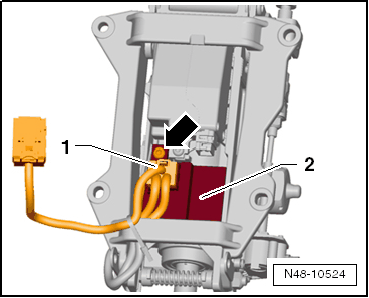

Fig 1: Identifying Connector -1-, Bolt -Arrow- And Power Adjustable Steering Column Control Module -2-
-- Remove the bolt -arrow-.
-- Slightly lift the Power Adjustable Steering Column Control Module -J866- -2- and remove it from the steering column.
