BATTERY IN Control Module for Emergency Call Module and Communication Unit -J949-, REPLACING: Removing
WARNING: This page is about a different car, the 2017 Volkswagen Touareg, 2016 Volkswagen Touareg, and 2015 Volkswagen Touareg. However, it is still accessible from the selected car via links, so may be relevant.
-- Turn off the ignition and all electrical equipment.
-- Remove the Control Module for Emergency Call Module and Communication Unit -J949-. Refer to Control Module for Emergency Call Module and Communication Unit -J949-, REMOVING AND INSTALLING .

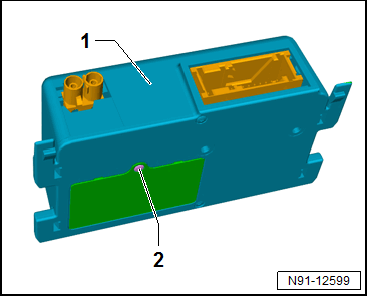

-- Remove the bolt -2- on the Control Module for Emergency Call Module and Communication Unit -J949- -1-.
-- Remove the cover from the battery compartment.

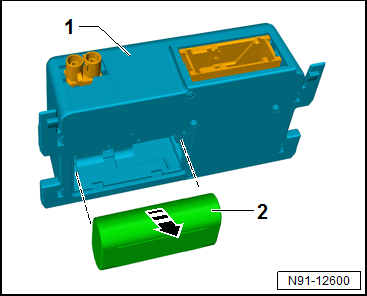

-- Remove the battery -2- from the Control Module for Emergency Call Module and Communication Unit -J949- -1- in direction of -arrow-.
