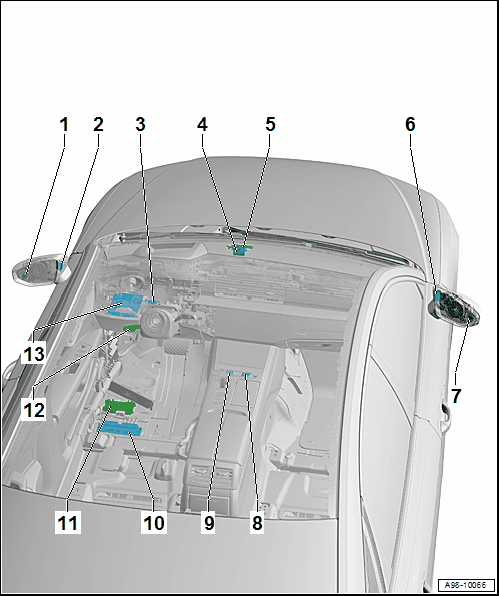

Component Location Overview - Sensors And Control Modules In Center Section Of Vehicle
WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2021 Audi S8, 2021 Audi A8 e Quattro, 2021 Audi A8 Quattro, 2020 Audi S8, and 2020 Audi A8 e Quattro. However, it is still accessible from the selected car via links, so may be relevant.
- Left Peripheral Camera -R244-
- Peripheral Camera. Refer to PERIPHERAL CAMERA .
- Removing and Installing. Refer to LEFT/RIGHT PERIPHERAL CAMERA -R244- / -R245-, REMOVING AND INSTALLING .
- Calibrating. Refer to PERIPHERAL CAMERA, CALIBRATING .
- Lane Change Assistance Warning Lamp in Driver Exterior Rearview Mirror -K233-
- Lane Change Assistance. Refer to LANE CHANGE ASSISTANCE .
- Removing and Installing. Refer to LANE CHANGE ASSISTANCE WARNING LAMP IN DRIVER AND FRONT PASSENGER EXTERIOR REARVIEW MIRROR -K233- / -K234-, REMOVING AND INSTALLING .
- Front Parking Aid Warning Buzzer -H22-
- Parking Aid/Parallel Parking Assist. Refer to PARKING AID/PARALLEL PARKING ASSIST/AUTONOMOUS PARKING .
- Removing and Installing. Refer to Front Parking Aid Warning Buzzer -H22-, REMOVING AND INSTALLING .
- Driver Assistance Systems Front Camera -R242-
- Driver Assistance Systems Front Camera. Refer to DRIVER ASSISTANCE SYSTEMS FRONT CAMERA .
- Removing and Installing. Refer to Driver Assistance Systems Front Camera -R242-, REMOVING AND INSTALLING .
- Calibrating. Refer to DRIVER ASSISTANCE SYSTEMS FRONT CAMERA, CALIBRATING .
- Lens with Window Defogger for Front Sensor System -Z113-
- Driver Assistance Systems Front Camera. Refer to DRIVER ASSISTANCE SYSTEMS FRONT CAMERA .
- Removing and Installing. Refer to Driver Assistance Systems Front Camera -R242-, REMOVING AND INSTALLING .
- Lane Change Assistance Warning Lamp in Front Passenger Exterior Rearview Mirror -K234-
- Lane Change Assistance. Refer to LANE CHANGE ASSISTANCE .
- Removing and Installing. Refer to LANE CHANGE ASSISTANCE WARNING LAMP IN DRIVER AND FRONT PASSENGER EXTERIOR REARVIEW MIRROR -K233- / -K234-, REMOVING AND INSTALLING .
- Right Peripheral Camera -R245-
- Peripheral Camera. Refer to PERIPHERAL CAMERA .
- Removing and Installing. Refer to LEFT/RIGHT PERIPHERAL CAMERA -R244- / -R245-, REMOVING AND INSTALLING .
- Calibrating. Refer to PERIPHERAL CAMERA, CALIBRATING .
- Parallel Parking Assistance Button -E581-
- Parallel Parking Assist. Refer to PARKING AID/PARALLEL PARKING ASSIST/AUTONOMOUS PARKING .
- In the Center Console Switch Module 1 -EX23-
- Center Console Switch Module 1 -EX23-, Removing and Installing. Refer to BUTTONS IN INSTRUMENT PANEL, REMOVING AND INSTALLING
- Parking Aid Button -E266-
- Parking Aid. Refer to PARKING AID/PARALLEL PARKING ASSIST/AUTONOMOUS PARKING .
- In the Center Console Switch Module 1 -EX23-
- Center Console Switch Module 1 -EX23-, Removing and Installing. Refer to BUTTONS IN INSTRUMENT PANEL, REMOVING AND INSTALLING
- Driver Assistance Systems Control Module -J1121-
- Parking Aid/Parallel Parking Assist/Autonomous Parking. Refer to PARKING AID/PARALLEL PARKING ASSIST/AUTONOMOUS PARKING .
- Peripheral Camera. Refer to PERIPHERAL CAMERA .
- Driver Assistance Systems Front Camera. Refer to DRIVER ASSISTANCE SYSTEMS FRONT CAMERA .
- Removing and Installing. Refer to Driver Assistance Systems Control Module -J1121-, REMOVING AND INSTALLING .
- Night Vision System Control Module -J853-
- Night Vision System. Refer to NIGHT VISION SYSTEM .
- Removing and Installing. Refer to Night Vision System Control Module -J853-, REMOVING AND INSTALLING .
- Calibrating. Refer to NIGHT VISION SYSTEM, CALIBRATING .
- Operating Lever for Adaptive Cruise Control
- Shared component with the steering column switch module
- Adaptive Cruise Control (ACC). Refer to ADAPTIVE CRUISE CONTROL (ACC) .
- Removing and Installing. Refer to STEERING COLUMN SWITCH MODULE, REMOVING AND INSTALLING
- Vehicle Electrical System Control Module -J519-
- Parking Aid/Parallel Parking Assist. Refer to PARKING AID/PARALLEL PARKING ASSIST/AUTONOMOUS PARKING .
- Removing and Installing. Refer to VEHICLE ELECTRICAL SYSTEM CONTROL MODULE -J519-, REMOVING AND INSTALLING .
