Heating Element Control Module 1, 2 And 3 - Z163- / -Z164- / -Z165- /Seat Heating Control Module -J882-, Removing And Installing: Removing
WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2021 Audi S8, 2021 Audi A8 e Quattro, 2021 Audi A8 Quattro, 2020 Audi S8, and 2020 Audi A8 e Quattro. However, it is still accessible from the selected car via links, so may be relevant.
-- Remove the sill panel strip. Refer to SILL PANEL, REMOVING AND INSTALLING .

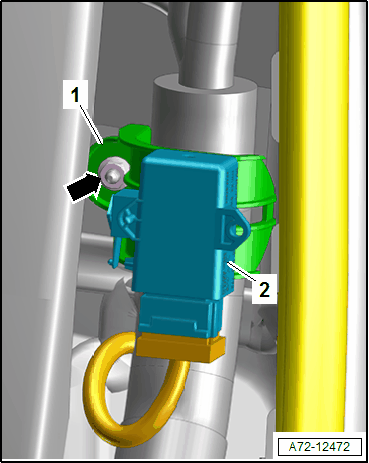

-- Remove the nut -arrow-.
-- Remove the control module -2- with bracket -1-.

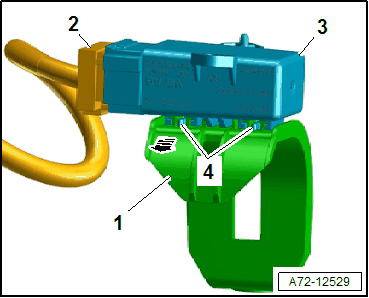

-- Unclip -arrow- the bracket -1- from the control module -3- by releasing the tab -4- using a small flat-head screwdriver.
-- Disconnect the connector -2- and remove the seat heating control module.
