Information Electronics Control Module 2 -J829-, REMOVING AND INSTALLING: Removing

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2015 Audi S8, 2015 Audi A8 Quattro, 2014 Audi S8, 2014 Audi A8 Quattro, and 2013 Audi S8. However, it is still accessible from the selected car via links, so may be relevant.

-- Fold the center armrest down and back.

-- Remove any DVDs or SD carts remaining in the Information Electronics Control Module 2 -J829-.

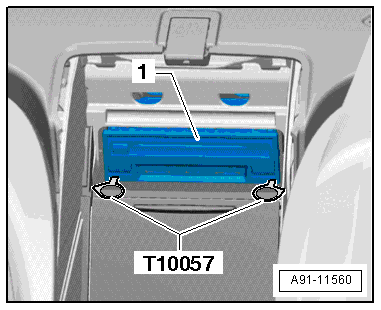

-- Insert the two clips from the Radio Removal ToolT10057 into the slits in the Information Electronics Control Module 2 -J829- -1- until they lock into place. Points on the grip eyelets of tool face outward.

Fig 1: Identifying Information Electronics Control Module 2 -J829- -1-

Courtesy of AUDI OF AMERICA, LLC

-- Remove the Information Electronics Control Module 2 -J829- -1- from the mounting frame.

-- Press the release tabs on the Information Electronics Control Module 2 -J829- and remove the Radio Removal ToolT10057.

-- Release and disconnect the connectors from the Information Electronics Control Module 2 -J829-.

-- Insert the Fiber-Optic Repair Set - Connector Protective CapsVAS6223/9 -1- onto the MOST bus connector -2-.

Fig 2: Identifying Fiber-Optic Cable Harness Connector And Protective Cap For Cable Connector VAS 6223/9
