Overview - Windshield Washer System
WARNING: This page does not describe the selected car, but rather 13 other vehicles, including the 2017 Audi SQ5, 2017 Audi Q5, 2016 Audi SQ5, 2016 Audi Q5, and 2015 Audi SQ5. However, it is still accessible from the selected car via links, so may be relevant.

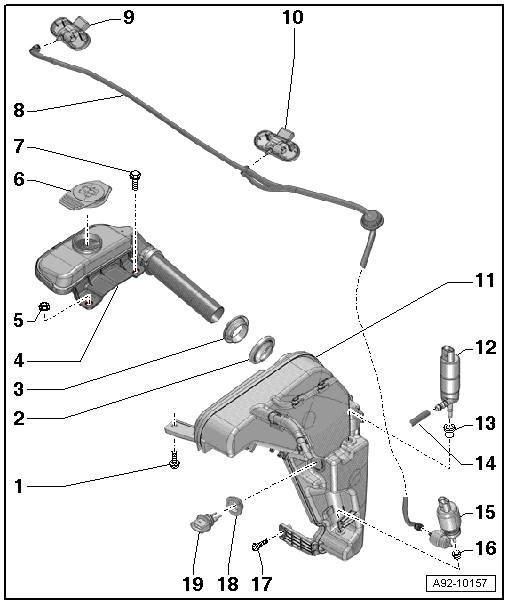

- Bolt
- Tightening sequence, refer to Fig 2
- O-Ring
- Replace if damaged.
- Grommet
- Replace if damaged.
- Filler Tube
- For the windshield washer fluid reservoir
- Removing and installing, refer to WASHER FLUID RESERVOIR FILLER TUBE, REMOVING AND INSTALLING
- Nut
- 7 Nm
- Cap
- For the filler neck
- Bolt
- 7 Nm
- Washer Fluid Hose
- For the windshield washer system
- Right Spray Nozzle
- Depending on vehicle equipment with Right Washer Nozzle Heater -Z21-
- Removing and installing, refer to SPRAY NOZZLES, REMOVING AND INSTALLING
- Adjusting, refer to SPRAY NOZZLES, ADJUSTING .
- Left Spray Nozzle
- Depending on vehicle equipment with Left Washer Nozzle Heater -Z20-
- Removing and installing, refer to SPRAY NOZZLES, REMOVING AND INSTALLING
- Adjusting, refer to SPRAY NOZZLES, ADJUSTING .
- Windshield Washer Fluid Reservoir
- Removing and installing, refer to WINDSHIELD WASHER FLUID RESERVOIR, REMOVING AND INSTALLING
- Headlamp Washer Pump -V11-
- Grommet
- Replace if damaged.
- Washer Fluid Hose
- For the headlamp washer system
- Windshield Washer Pump -V5-
- Removing and installing, refer to WINDSHIELD WASHER PUMP, REMOVING AND INSTALLING
- Grommet
- Replace if damaged.
- Bolt
- Tightening sequence, refer to Fig 2
- Grommet
- Replace if damaged.
- Windshield Washer Fluid Level Sensor -G33-
- Removing and installing, refer to WINDSHIELD WASHER FLUID LEVEL SENSOR, REMOVING AND INSTALLING
-- Tighten the washer fluid bolts in the sequence specified:
-- Tighten the bolt -3- to 7 Nm.
-- Tighten the bolt -4- to 7 Nm.
