Windshield Washer Fluid Level Sensor, Removing And Installing: Removing

WARNING: This page does not describe the selected car, but rather 13 other vehicles, including the 2017 Audi SQ5, 2017 Audi Q5, 2016 Audi SQ5, 2016 Audi Q5, and 2015 Audi SQ5. However, it is still accessible from the selected car via links, so may be relevant.

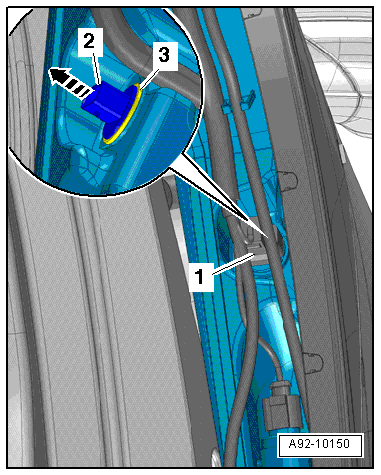

Fig 1: Disconnect Electrical Connector

Courtesy of AUDI OF AMERICA, LLC

-- Turn off the ignition and remove the key.

-- Remove left front wheel.

-- Remove the left front wheel housing liner, refer to FRONT WHEEL HOUSING LINER, REMOVING AND INSTALLING .

-- Disconnect the connector -1-.

-- Place a drip tray under the windshield washer fluid reservoir.

-- Remove the Windshield Washer Fluid Level Sensor -G33- -2- from the washer fluid reservoir.
