Overview - Windshield Wiper System

WARNING: This page does not describe the selected car, but rather 13 other vehicles, including the 2017 Audi SQ5, 2017 Audi Q5, 2016 Audi SQ5, 2016 Audi Q5, and 2015 Audi SQ5. However, it is still accessible from the selected car via links, so may be relevant.

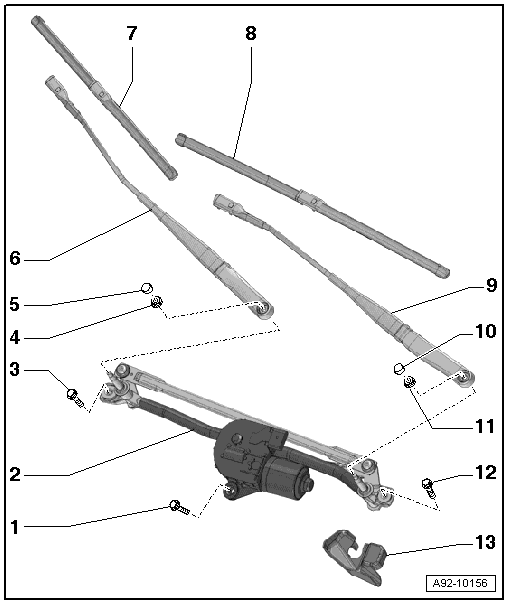

Fig 1: Overview Of Windshield Wiper System

Courtesy of AUDI OF AMERICA, LLC

Bolt
- Tightening sequence, refer to Fig 2
Windshield Wiper Motor -V-
- With Wiper Motor Control Module -J400-
- Removing and installing, refer to Windshield Wiper Motor -V-, REMOVING AND INSTALLING
Screw
- Tightening sequence, refer to Fig 2
Nut
- 17 Nm
Cap
Passenger Side Windshield Wiper Arm
- There are different lengths .
- Removing and installing, refer to WINDSHIELD WIPER ARMS, REMOVING AND INSTALLING
- Adjusting, refer to WINDSHIELD WIPER ARMS, ADJUSTING .
Passenger Side Windshield Wiper Blade
- There are different lengths .
- Replacing, refer to WIPER BLADE, REMOVING AND INSTALLING .
Driver Side Windshield Wiper Blade
- There are different lengths .
- Replacing, refer to WIPER BLADE, REMOVING AND INSTALLING .
Driver Side Windshield Wiper Arm
- There are different lengths .
- Removing and installing, refer to WINDSHIELD WIPER ARMS, REMOVING AND INSTALLING
- Adjusting, refer to WINDSHIELD WIPER ARMS, ADJUSTING .
Cap
Nut
- 17 Nm
Screw
- Tightening sequence, refer to Fig 2
Water Drain Channel

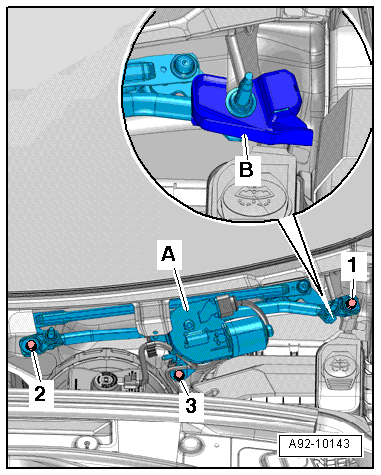

Fig 2: Identifying Windshield Wiper System Tightening Sequence

Courtesy of AUDI OF AMERICA, LLC

-- Tighten the bolts in -1, 2 and 3- sequence in two stages as follows:

-- Install by hand as far as the stop.

-- Tighten to 8 Nm.
