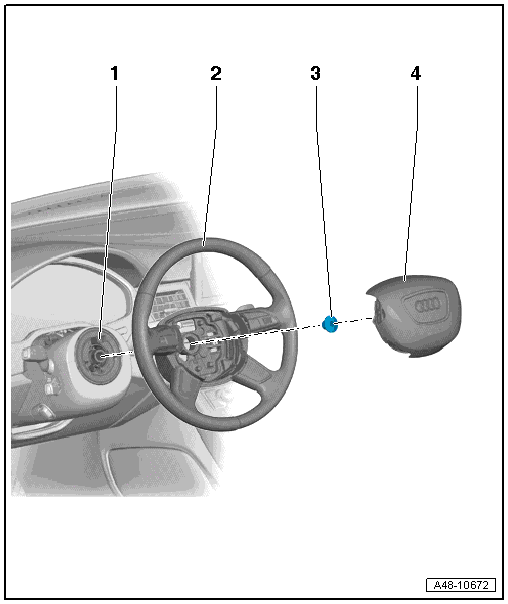

Overview - Steering Wheel
- Steering Column Electronics Control Module -J527-
- Removing and installing. Refer to [For engine(s) CTUB, CEJA, CGTA, CDRA, CEUA, CPNA] Steering Column Electronics Control Module J527, Removing and Installing .
- Steering Wheel
- Removing and installing. Refer to STEERING WHEEL, REMOVING AND INSTALLING .
- There are different versions. For allocation. Refer to the Parts information.
- Bolt
- 30 Nm + 90°
- Always replace if removed
- Airbag UnitWARNING:
Follow the safety precautions when working on airbags. Refer to PYROTECHNIC COMPONENTS SAFETY PRECAUTIONS .
- Removing and Installing. Refer to DRIVER SIDE AIRBAG .
