Left Flange Shaft, Removing And Installing: Removing

• Secure the transmission on the Engine And Transmission Holder:VAS6095  . Refer to SECURING ON ENGINE AND TRANSMISSION HOLDER .

-- Tilt the transmission back on the engine/transmission holder so the transmission fluid does not drain out.

-- Remove the bolts -arrows- from the flange shaft mounting bracket.

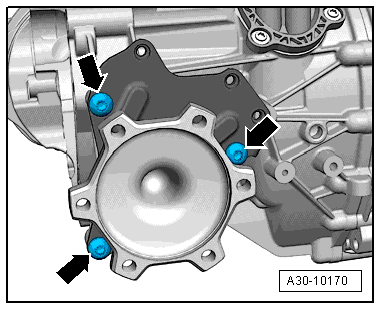

Fig 1: Identifying Bolts & Flange Shaft Mounting Bracket

Courtesy of AUDI OF AMERICA, LLC

-- Remove the left flange shaft -1- from the transmission, in the direction of -arrow A-.

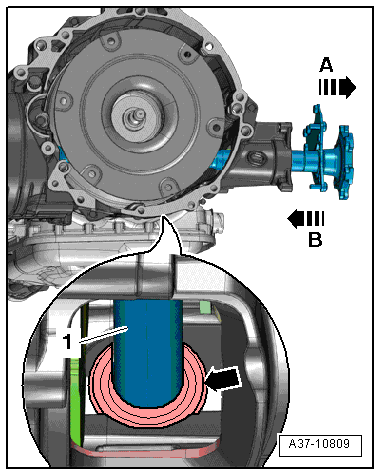

Fig 2: Install Left Flange Shaft Into Transmission When Doing This, Insert Flange Shaft Centrally Into Shaft Seal On Front Differential

Courtesy of AUDI OF AMERICA, LLC

-- Remove the torque converter. Refer to TORQUE CONVERTER .
