Perform any subsequent work using the Vehicle Diagnostic Tester.
WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2018 Audi S6, 2018 Audi A6 Quattro, 2018 Audi A6, 2017 Audi S6, and 2017 Audi A6 Quattro. However, it is still accessible from the selected car via links, so may be relevant.
- Connect the Vehicle Diagnostic Tester and proceed with a vehicle-specific entry in Guided Fault Finding.
Wait until the Vehicle Diagnostic Tester has checked all the vehicle control module.
- Press the GO TO button and select "function/component selection".
- Select the program in Guided Function.
Follow the instructions on the screen of the Vehicle Diagnostic Tester to perform the adjustment/calibration.
Turn the adjusting screw with a hex socket wrench (minimum length: approximately 120 mm) to mechanically adjust the Night Vision System Camera - R212- around its roller axle.

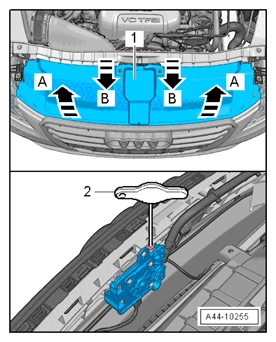

- To do so open the hood and remove the lock carrier cover Refer to Body Exterior Front Bumper Overview.
- Mount the hex socket wrench -2- and make the adjustment according to the specification in "Guided Fault Finding".
NOTE:
Make sure there is no one or nothing between the Night Vision System Camera - R212- and the infrared system calibration plate while making the adjustment.
Adjusting the pitch-yaw angle of the Night Vision System Camera - R212- is electronic by starting the correct program using the Vehicle Diagnostic Tester in Guided Function.
