Multimedia Display Unit 3 Bracket -R315- / Multimedia Display Unit 4 Bracket -R316-, Removing And Installing: Removing

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2021 Audi S8, 2021 Audi A8 e Quattro, 2021 Audi A8 Quattro, 2020 Audi S8, and 2020 Audi A8 e Quattro. However, it is still accessible from the selected car via links, so may be relevant.

-- Turn off the ignition and all electrical equipment. Set the ignition key outside of the vehicle.

-- Remove the Multimedia Display Unit 4 -Y32-. Refer to MULTIMEDIA DISPLAY UNIT 3 -Y31- / MULTIMEDIA DISPLAY UNIT 4 -Y32-, REMOVING AND INSTALLING .

Vehicles without Reclining Seat

Courtesy of AUDI OF AMERICA, LLC

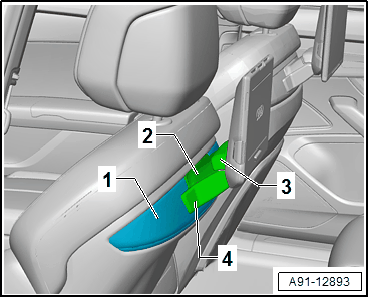

-- Use the : 3409 to remove the trim -1 through 4- in the following sequence.

-- Starting at the top, unclip the hinge cover trim -3-.

-- Unclip the upper trim -2-.

-- Unclip the lower trim -4-.

-- Unclip the backrest trim -1- and disconnect the connector, if equipped.

Vehicles with Reclining Seat

Courtesy of AUDI OF AMERICA, LLC

-- Use the : 3409 to remove the trim -1, 2, and 4- in the following sequence.

-- Release the upper trim -2- by pushing it upward and then remove it.

-- Unclip the lower trim -4-.

-- Unclip the backrest trim -1- and disconnect the connector, if equipped.

Continuation for All Vehicles

Courtesy of AUDI OF AMERICA, LLC

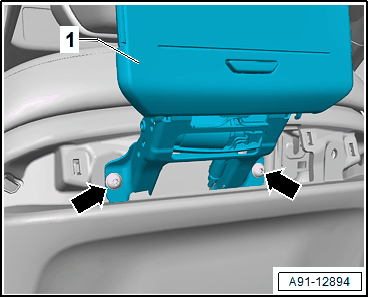

-- Remove the bolts -arrows- from the Multimedia Display Unit 4 Bracket -R316- -1-.

-- Release and disconnect the connectors.

-- Remove the Multimedia Display Unit 4 Bracket - R316- -1- from the left front seat backrest toward the rear.
