Washer Nozzle For Laser Distance Regulation Control Module, Removing And Installing: Removing
WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2021 Audi S8, 2021 Audi A8 e Quattro, 2021 Audi A8 Quattro, 2020 Audi S8, and 2020 Audi A8 e Quattro. However, it is still accessible from the selected car via links, so may be relevant.
The washer nozzles are removed from the front, through the radiator grille.

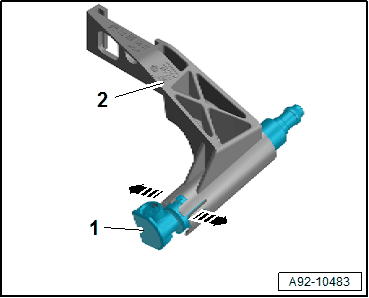

-- Pull the washer nozzle telescope -1- out slightly and release the retainers in direction of -arrows-. Push the washer nozzle -1- slightly out of the mount -2- from the back.
-- Release the retainer for the washer fluid hose and remove the washer fluid hose.
-- Remove the washer nozzle -1- from the mount -2-.
