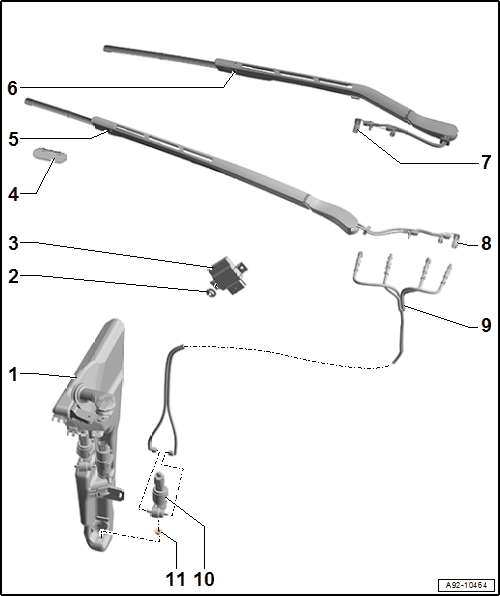

Overview - Windshield Washer System, NASSARM Windshield Wipers
WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2021 Audi S8, 2021 Audi A8 e Quattro, 2021 Audi A8 Quattro, 2020 Audi S8, and 2020 Audi A8 e Quattro. However, it is still accessible from the selected car via links, so may be relevant.
- Washer Fluid Reservoir
- Overview. Refer to OVERVIEW - WINDSHIELD WASHER SYSTEM .
- Nut
- Quantity: 2
- 3 Nm
- Windshield Washer Pump Control Module -J1100-
- Removing and installing. Refer to Windshield Washer Pump Control Module -J1100-, REMOVING AND INSTALLING .
- Blind Cover
- Quantity: 3
- Right Washer Nozzle
- With Thermal Resistor 1 in Front Passenger Side Windshield Wiper Arm -Z141-
- Integrated in the windshield wiper arm and cannot be replaced separately if faulty
- Windshield Wiper Arm, Replacing. Refer to WINDSHIELD WIPER ARMS, REMOVING AND INSTALLING, NASSARM WINDSHIELD WIPERS .
- Adjusting. Refer to WASHER NOZZLES, ADJUSTING .
- Left Washer Nozzle
- With Thermal Resistor 1 in Driver Side Windshield Wiper Arm -Z139-
- Integrated in the windshield wiper arm and cannot be replaced separately if faulty
- Windshield Wiper Arm, Replacing. Refer to WINDSHIELD WIPER ARMS, REMOVING AND INSTALLING, NASSARM WINDSHIELD WIPERS .
- Adjusting. Refer to WASHER NOZZLES, ADJUSTING .
- Washer Fluid Hose
- To the washer nozzles in the windshield wiper arm
- Washer Fluid Hose
- To the washer nozzles in the windshield wiper arm
- Washer Fluid Hose
- From the window washer pump
- Windshield Washer Pump -V5-
- Removing and installing. Refer to WINDSHIELD WASHER PUMP, REMOVING AND INSTALLING .
- Grommet
- Replace if damaged.
