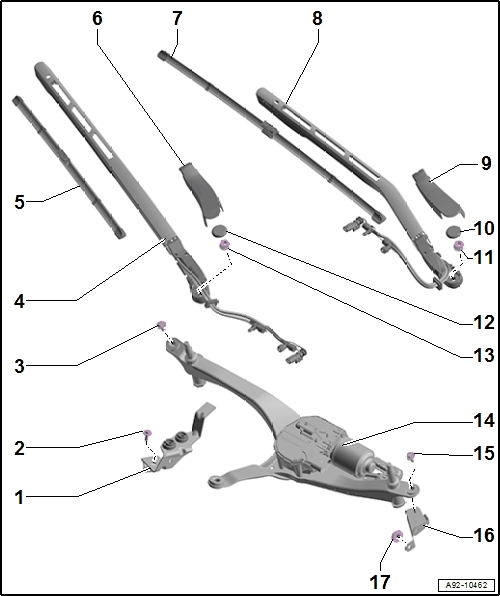

Overview - Windshield Wiper System
WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2021 Audi S8, 2021 Audi A8 e Quattro, 2021 Audi A8 Quattro, 2020 Audi S8, and 2020 Audi A8 e Quattro. However, it is still accessible from the selected car via links, so may be relevant.
- Bracket
- There are different versions. Refer to the Parts Information.
- Bolt
- 8 Nm
- Bolt
- 8 Nm
- Front Passenger Side Windshield Wiper Arm
- There are different lengths and versions. Refer to the Parts Information.
- Removing and installing. Refer to WINDSHIELD WIPER ARMS, REMOVING AND INSTALLING .
- Adjusting. Refer to WINDSHIELD WIPER ARMS, ADJUSTING .
- Front Passenger Side Wiper Blade
- There are different lengths. Refer to the Parts Information.
- Replacing. Refer to WIPER BLADE, REMOVING AND INSTALLING .
- Windshield Wiper Arm Cover
- Nassarm windshield wipers only
- Driver Side Wiper Blade
- There are different lengths. Refer to the Parts Information.
- Replacing. Refer to WIPER BLADE, REMOVING AND INSTALLING .
- Driver Side Windshield Wiper Arm
- There are different lengths and versions. Refer to the Parts Information.
- Removing and installing. Refer to WINDSHIELD WIPER ARMS, REMOVING AND INSTALLING .
- Adjusting. Refer to WINDSHIELD WIPER ARMS, ADJUSTING .
- Windshield Wiper Arm Cover
- Nassarm windshield wipers only
- Cap
- Nut
- 32 Nm
- Cap
- Nut
- 32 Nm
- Windshield Wiper Motor -V-
- With the Wiper Motor Control Module -J400-
- Removing and installing. Refer to Windshield Wiper Motor -V-, REMOVING AND INSTALLING .
- Bolt
- 8 Nm
- Side Mount
- For Windshield Wiper Motor -V-
- Nut
- Quantity: 2
- 10 Nm
