Wiper Blade, Removing And Installing, NASSARM Windshield Wipers: Installing

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2021 Audi S8, 2021 Audi A8 e Quattro, 2021 Audi A8 Quattro, 2020 Audi S8, and 2020 Audi A8 e Quattro. However, it is still accessible from the selected car via links, so may be relevant.

Install in reverse order of removal and note the following:

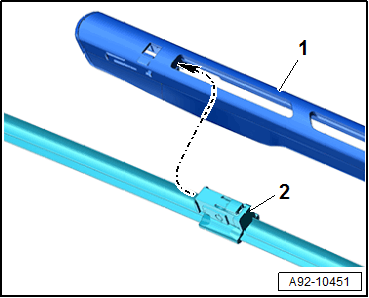

-- Guide the wiper blade -2- parallel into the windshield wiper arm -1- -arrow-. Make sure that the wiper blade is slid into the windshield wiper arm until the clip audibly engages.

GWWA92-10451Courtesy of AUDI OF AMERICA, LLC

-- To leave the "Service position", either press the windshield wiper switch or drive faster than 6 km/h.
