Wiper Blade, Removing And Installing, NASSARM Windshield Wipers: Removing

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2021 Audi S8, 2021 Audi A8 e Quattro, 2021 Audi A8 Quattro, 2020 Audi S8, and 2020 Audi A8 e Quattro. However, it is still accessible from the selected car via links, so may be relevant.

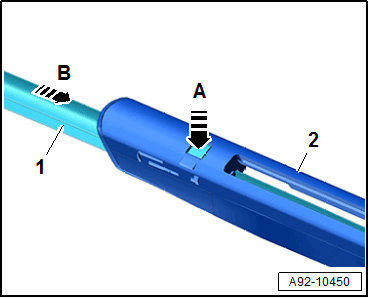

GWWA92-10450Courtesy of AUDI OF AMERICA, LLC

-- Bring the windshield wiper into the service position. Refer to WINDSHIELD WIPER, BRINGING INTO SERVICE POSITION .

-- Lift the windshield wiper arm off the windshield.

-- Press the clip -arrow A- and slide the wiper blade -1- off of the windshield wiper arm -2- -arrow B-.

-- Remove the wiper blade.
