Tunnel CROSSMEMBER, Removing And Installing, Vehicles With 6-Cylinder Engine: Removing

-- Remove the rear noise insulation -2-. Refer to Noise Insulation, Removing and Installing .

Fig 1: Identifying Front Noise Insulation

Courtesy of AUDI OF AMERICA, LLC

Vehicles with a 3.0L TFSI engine:

Fig 2: Identifying Left Front Muffler Nuts And Bolts

Courtesy of AUDI OF AMERICA, LLC

-- Remove the left front muffler. Refer to EXHAUST PIPES/MUFFLERS .

Vehicles with a 3.0L TDI Engine

Fig 3: Identifying Bolts

Courtesy of AUDI OF AMERICA, LLC

-- Remove the bolts -arrows- from the front exhaust pipe.

-- Mount the Engine/Gearbox Jack - Gearbox Support:T10337  on the Engine and Gearbox Jack:VAS6931  and attach it under the transmission.

-- Raise the transmission slightly.

Fig 4: Attach To Bottom Of The Transmission

Courtesy of AUDI OF AMERICA, LLC

-- Remove the bolt -3- and free up the front emergency release cable on the tunnel crossmember.

Fig 5: Identifying Selector Lever Bracket

Courtesy of AUDI OF AMERICA, LLC

-- Remove the bolts from the tunnel crossmember -arrows-.

Fig 6: Identifying Bolts

Courtesy of AUDI OF AMERICA, LLC

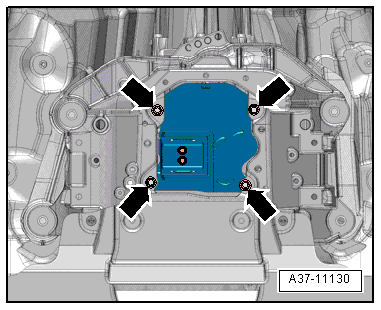

-- Remove the nuts -arrows- and the tunnel crossmember.

Fig 7: Locating Nuts

Courtesy of AUDI OF AMERICA, LLC
