Overview - Window Regulator

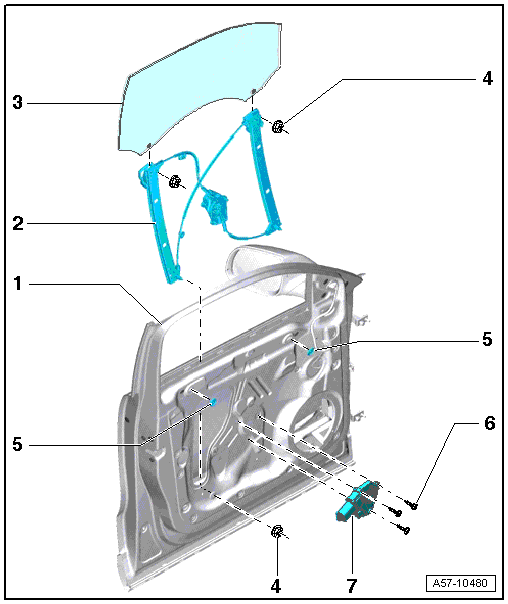

Fig 1: Identifying Window Regulator Motor And Regulator Assembly

Courtesy of AUDI OF AMERICA, LLC

Door
-- Remove the door trim panel. Refer to FRONT DOOR TRIM PANEL, REMOVING AND INSTALLING .
Window Regulator
- The door window is removed. Refer to FRONT DOOR WINDOW, REMOVING AND INSTALLING .
- Removing and installing. Refer to WINDOW REGULATOR, REMOVING AND INSTALLING .
Door Window
- Removing and installing. Refer to FRONT DOOR WINDOW, REMOVING AND INSTALLING .
Nut
- 6 Nm
Seal
Bolt
- 3.5 Nm
- Quantity: 3
Window Regulator Motor
- Removing and installing. Refer to WINDOW REGULATOR, REMOVING AND INSTALLING .
