Outer Window Shaft Strip, Removing And Installing: Notes

Special tools and workshop equipment required

• Window Slot Seal Tool: T40219

: T40219  Preparing:

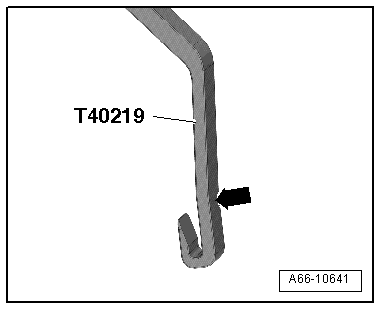

Fig 1: Identifying Window Slot Seal Tool T40219

Courtesy of AUDI OF AMERICA, LLC

• To remove the window shaft strip, pull the : T40219  carefully at the marked location -arrow- so that it can be inserted behind the strip.

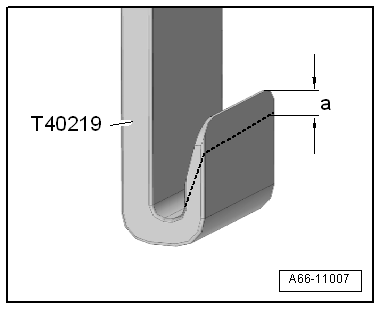

-- Shorten the : T40219  on the marked position to the dimension -a-.

Courtesy of AUDI OF AMERICA, LLC

• Dimension -a- = 5 mm
