Overview - Window Regulator

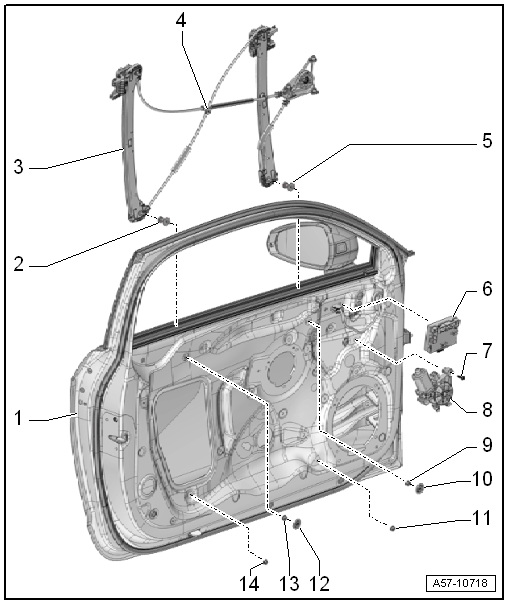

Fig 1: Exploded View Of Window Regulator

Courtesy of AUDI OF AMERICA, LLC

Door
Double Bolt
Window Regulator
- Removing and installing. Refer to WINDOW REGULATOR, REMOVING AND INSTALLING
Clip
- For the window regulator cable
Double Bolt
Door Control Module
- Component location overview. Refer to COMPONENT LOCATION OVERVIEW - CENTRAL LOCKING .
Bolt
- 3.5 Nm
- Quantity: 3
Window Regulator Motor
- Driver Window Regulator Motor -V147-, Front Passenger Window Regulator Motor -V148-
- Removing and installing. Refer to WINDOW REGULATOR MOTOR, REMOVING AND INSTALLING
Nut
- 6 Nm
Cap
Nut
- 6 Nm
Cap
Nut
- 6 Nm
Nut
- 6 Nm
