Overview - Connection For External Multimedia Devices
There are several External Audio Source Connection -R199- versions:
- AMI (Audi Music Interface), UF7
- AMI (Audi Music Interface) - USB charging, AUX IN, UE4
- AMI (Audi Music Interface) - USB connection (quantity: 2), AUX IN, ASI, UI2
- Rear AMI (Audi Music Interface)
ASI - Audi Smartphone Interface
The External Audio Source Connection -R199- is part of the Information Electronics Control Module 1 -J794-.
The interface -2-, 30-Pin Connector -T30b- is located under the front center armrest or in the storage compartment.
Various devices can be connected.

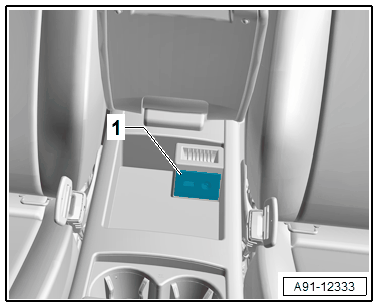

The interface -1- is located under the front center armrest.
The USB port is used to charge USB devices.
Various devices can be connected to the AUX IN jack. Suitable adapter cables are required. Refer to the Owner's Manual.
The interface -1- is located under the front center armrest.
The USB ports are fully connected. Various devices can be connected.
- iPod
- MP3 player
- USB memory sticks
- Smartphones
- Tablets
The External Audio Source Connection 2 -R321- -1- is located in the rear center armrest storage compartment.
The External Audio Source Connection 2 -R231- is part of the Information Electronics Control Module 2 -J829-.
Various devices can be connected.
Suitable adapter cables are needed. Refer to the Owner's Manual.
Fault Finding is performed using the "Guided Fault Finding" . Refer to Vehicle Diagnostic Tester.
