Overview - Windshield Washer System: Notes

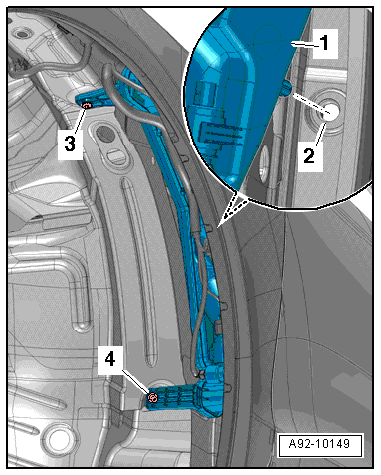

Fig 1: Exploded View Of Windshield Washer Fluid Reservoir, Lines And Nozzle

Courtesy of AUDI OF AMERICA, LLC

Windshield Washer Fluid Level Sensor -G33-
- Removing and installing. Refer to WINDSHIELD WASHER FLUID LEVEL SENSOR, REMOVING AND INSTALLING .
Grommet
- Always replace if damaged.
Screw
- Tightening Sequence. Refer to Figure.
Screw
- Tightening Sequence. Refer to Figure.
Bolt
- 8 Nm
Bolt
- 8 Nm
Filler Neck
- For the washer fluid reservoir
- Removing and installing. Refer to WASHER FLUID RESERVOIR FILLER NECK, REMOVING AND INSTALLING .
Cap
- For the filler neck
Washer Fluid Hose
- For the windshield washer system
Right Washer Nozzle
- Versions with Right Washer Nozzle Heater -Z21-
- Removing and installing. Refer to WASHER NOZZLES, REMOVING AND INSTALLING .
- Adjusting. Refer to WASHER NOZZLES, ADJUSTING .
Left Washer Nozzle
- Versions with Left Washer Nozzle Heater -Z20-
- Removing and installing. Refer to WASHER NOZZLES, REMOVING AND INSTALLING .
- Adjusting. Refer to WASHER NOZZLES, ADJUSTING .
Grommet
- For the washer fluid hose in the front lid
Grommet
- For the windshield washer fluid hose on the fender
Grommet
- Always replace if damaged.
O-ring
- Always replace if damaged.
Washer Fluid Reservoir
- Removing and installing. Refer to WASHER FLUID RESERVOIR, REMOVING AND INSTALLING .
Securing Tab
- For the mount inside the fender end plate
Windshield Washer Pump -V5-
- Removing and installing. Refer to WINDSHIELD WASHER PUMP, REMOVING AND INSTALLING .
Grommet
- Always replace if damaged.
