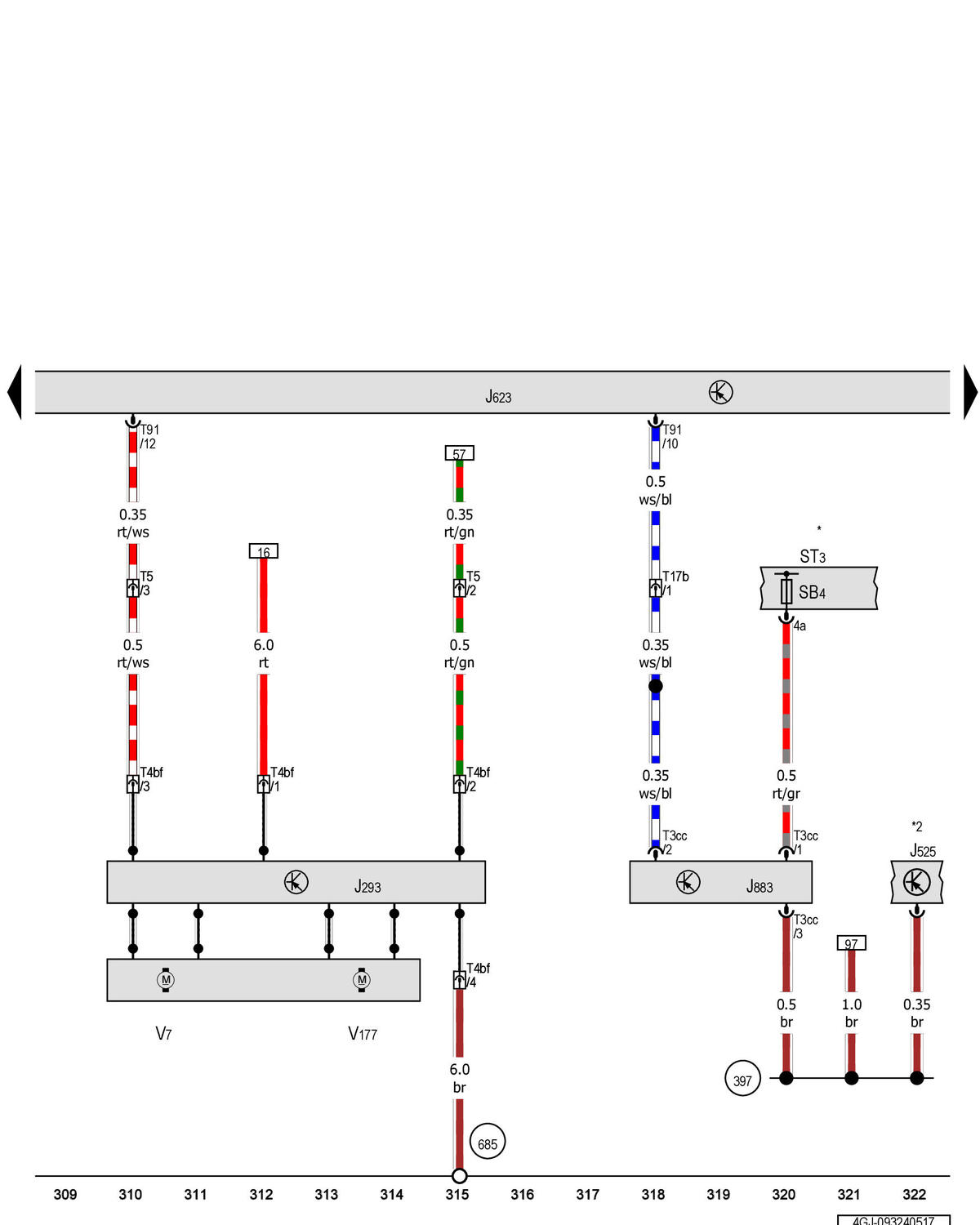

Radiator Fan Control Module, Engine Control Module, Exhaust Door Control Unit, Radiator Fan, Radiator Fan 2: Notes

GWW4GJ-093240517Courtesy of AUDI OF AMERICA, LLC
