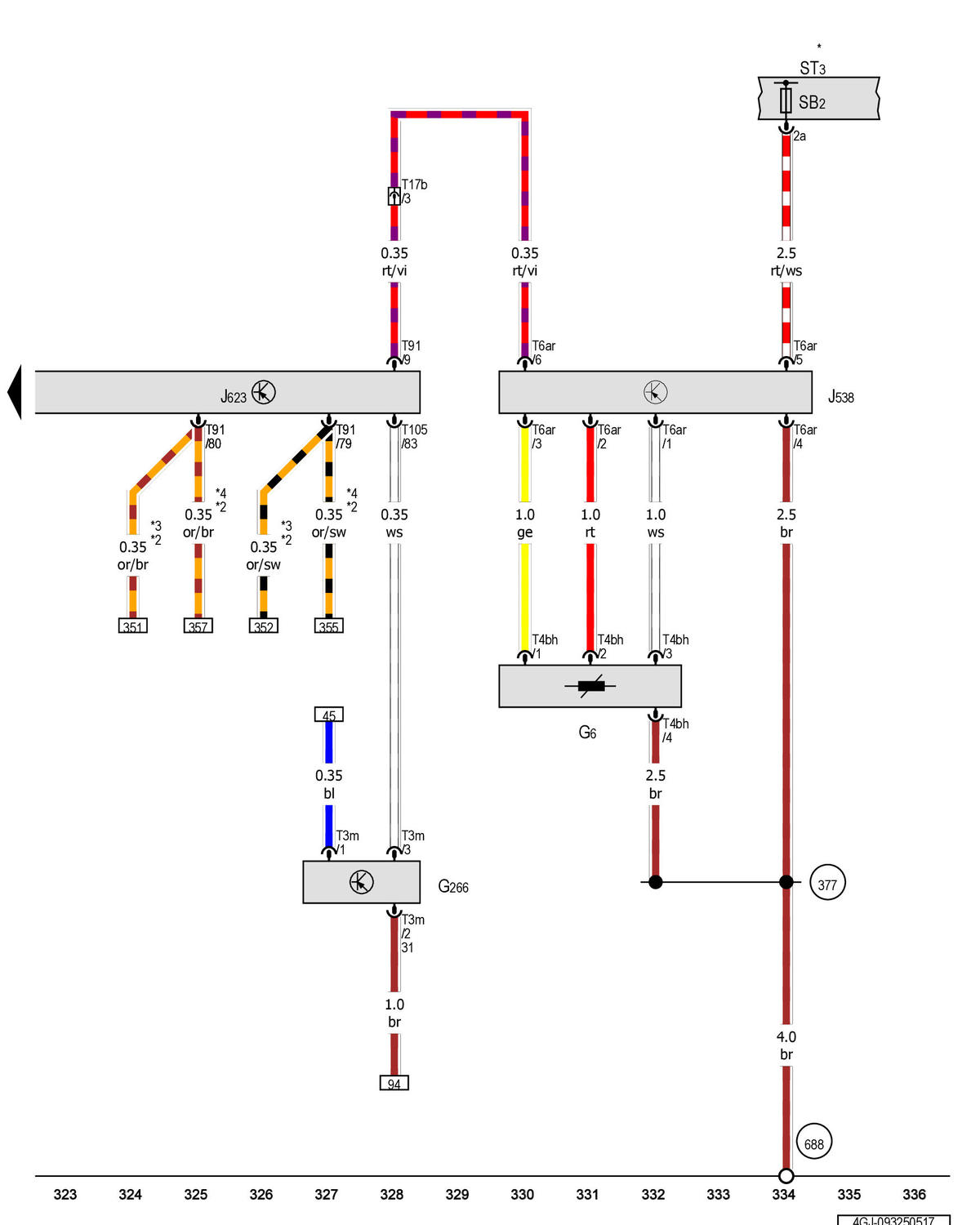

Transfer Fuel Pump, Oil Level Thermal Sensor, Fuel Pump Control Module, Engine Control Module: Notes

GWW4GJ-093250517Courtesy of AUDI OF AMERICA, LLC
