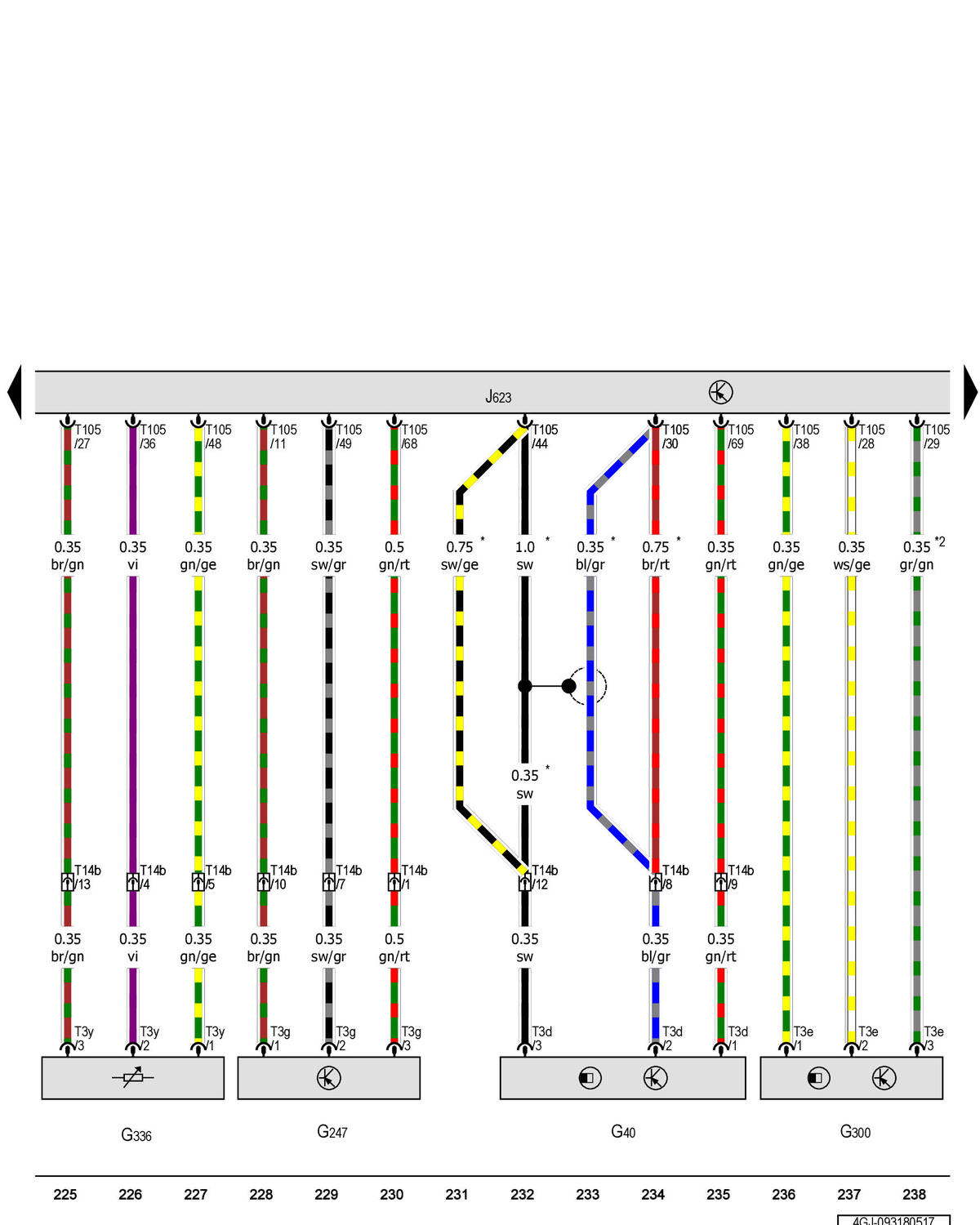

Camshaft Position Sensor, Fuel Pressure Sensor, Intake Manifold Runner Position Sensor, Engine Control Module: Notes

GWW4GJ-093180517Courtesy of AUDI OF AMERICA, LLC
