Active Steering Control Module -J792-, Removing And Installing: Installing
Install In Reverse Order Of Removal. Note The Following:

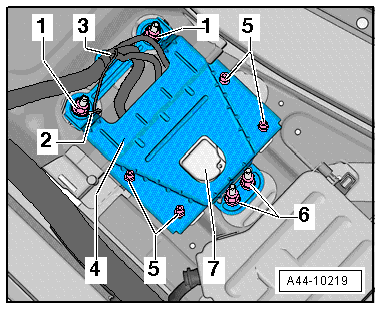

Follow The Sequence When Installing The Control Module:
-- Attach the bracket -4- to the control module -7- with the bolts -5-.
-- Connect the wiring harness connectors -3- to the control module -7-.
-- Carefully slide the wiring harness clip connection -3- into the bracket -4-.
-- Insert the control module with the bracket.
-- Connect the GND wire -2- to the threaded pin and tighten the nuts -1-.
-- Tighten the nuts -6-.
-- If equipped, place the Night Vision System Control Module -J853- E-box with the 2 pins into the seat crossmember and place the front retainer over the stud bolt.
-- The basic setting must be performed on the system if the Active Steering Control Module -J792- was replaced. Refer to DYNAMIC STEERING BASIC SETTING .
