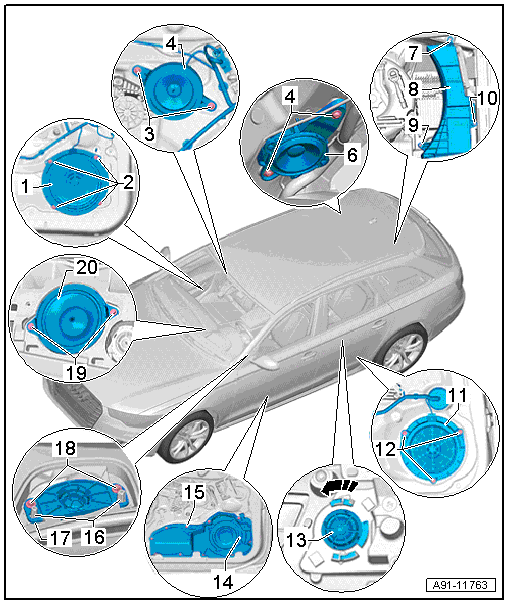

Component Location Overview - Sound System, Speaker, Standard, BOSE, AVANT

Courtesy of AUDI OF AMERICA, LLC

Left Front Bass Speaker -R21- /Right Front Bass Speaker -R23-, 9VD
- Removing and installing. Refer to LEFT/RIGHT FRONT BASS SPEAKER -R21- / -R23-, REMOVING AND INSTALLING, STANDARD .
Bolt
- 3 Nm
- Quantity: 4
Bolt
- 3 Nm
- Quantity: 2
Left Front Midrange Speaker -R103- /Right Front Midrange Speaker -R104-, 8RY
- Removing and installing. Refer to LEFT AND RIGHT FRONT MIDRANGE SPEAKER -R103- / -R104-, REMOVING AND INSTALLING .
Bolt
- 2 Nm
- Quantity: 2
Left Effects Speaker -R209- /Right Effects Speaker -R210-, 8RY
- Removing and installing. Refer to LEFT AND RIGHT EFFECTS SPEAKER -R209- / -R210-, REMOVING AND INSTALLING, AVANT .
Bolt
- 3 Nm
Subwoofer -R211-
- Removing and installing. Refer to Subwoofer -R211-, REMOVING AND INSTALLING, AVANT .
Bolt
- 3 Nm
Bolt
- 3 Nm
Left Rear Mid-Bass Speaker -R159- /Right Rear Mid-Bass Speaker -R160-
- Removing and installing. Refer to LEFT/RIGHT REAR MID-BASS SPEAKER -R159- / -R160-, REMOVING AND INSTALLING .
  - Left Rear Bass Speaker -R15- /Right Rear Bass Speaker -R17-
- Removing and installing. Refer to LEFT AND RIGHT REAR BASS SPEAKER -R15- / -R17-, REMOVING AND INSTALLING .
Bolt
- 3 Nm
- Quantity: 3
Left Rear Treble Speaker -R14- /Right Rear Treble Speaker -R16-
- Removing and installing. Refer to LEFT AND RIGHT REAR TREBLE SPEAKER -R14- / -R16-, REMOVING AND INSTALLING .
Left Front Bass Speaker -R21- /Right Front Bass Speaker -R23-, 8RY
- Removing and installing. Refer to LEFT/RIGHT FRONT BASS SPEAKER -R21- / -R23-, REMOVING AND INSTALLING, BOSE .
Bolt
- Quantity: 10
- 3 Nm
Centering Pin
Left Front Treble Speaker -R20- /Right Front Treble Speaker -R22-
- Removing and installing. Refer to LEFT/RIGHT FRONT TREBLE SPEAKER -R20- / -R22-, REMOVING AND INSTALLING .
Bolt
- 2 Nm
- Quantity: 2
Bolt
- 2 Nm
- Quantity: 2
Center Speaker -R208-
- Removing and installing. Refer to Center Speaker -R208-, REMOVING AND INSTALLING .
