Left/Right Front Level Control System Sensor -G78- /:G289, Removing And Installing: Removing

NOTE:

In order to be able to remove the Left Front Level Control System Sensor -G78- the steering wheel must be turned all the way to the right; this assures that there is enough clearance between the control arm and the stabilizer bar.

In order to be able to remove the Right Front Level Control Sensor -G289- the steering wheel must be turned all the way to the left; this assures that there is enough clearance between the control arm and the stabilizer bar.

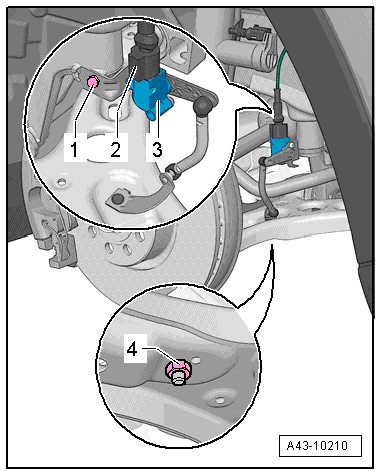

-- Disconnect the connector -2-.

Courtesy of AUDI OF AMERICA, LLC

-- Remove the nut -4- and bolt -1-.

-- Remove the level control system sensor -3-.
