Left Vent Temperature Sensor -G150-, Removing And Installing: Removing

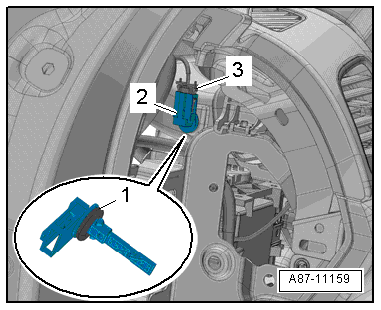

GWWA87-11159

-- Remove the driver side instrument panel cover. Refer to Driver Side Instrument Panel Cover, Removing And Installing .

-- Turn the vent temperature sensor -2- counterclockwise and remove it from the mount.

-- Disconnect the connector -3-.
