Right Vent Temperature Sensor -G151-, Removing And Installing: Removing

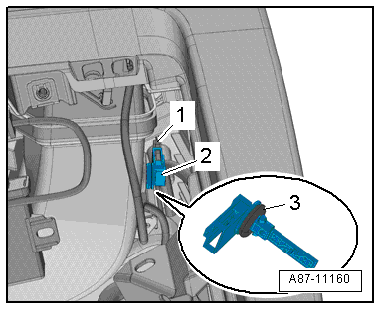

GWWA87-11160

-- Remove the glove compartment. Refer to Glove Compartment, Removing And Installing .

-- Disconnect the connector -1-.

-- Turn the vent temperature sensor -2- counterclockwise and remove it from the mount.
