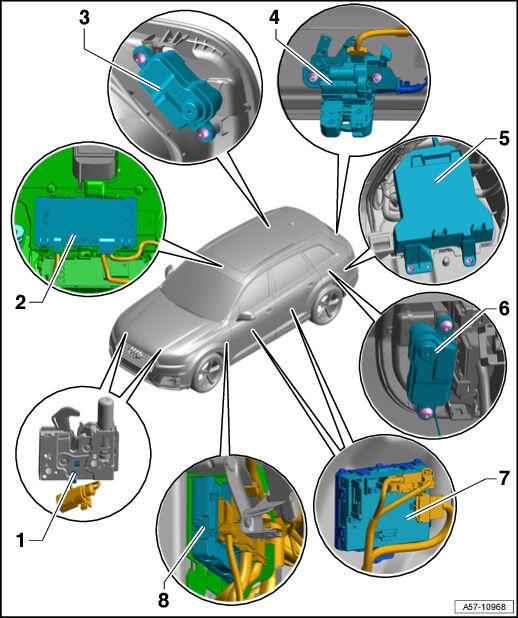

Component Location Overview - Central Locking
- Engine Hood Contact Switch --
- In the latch
- Engine Hood Contact Switch -F266-, Hood Contact Switch 2 -F329-
- Removing and Installing. Refer to Engine Hood Contact Switch -F266-, REMOVING AND INSTALLING .
- In the latch
- Anti-Theft Alarm System Sensor -G578-
- Overview. Refer to OVERVIEW - INTERIOR MONITORING .
- Fuel Filler Door Lock Motor -V155-
- Removing and Installing. Refer to Fuel Filler Door Lock Motor -V155-, REMOVING AND INSTALLING .
- Latch
- Rear Lid Lock Unit -VX25-
- With Rear Lid Central Locking System Motor -V53-, Lock Pawl Contact Switch -F443-, equipped on some models: Rear Lid Contact Switch -F111-
- Comfort System Central Control Module -J393-
- Removing and Installing. Refer to Comfort System Central Control Module -J393-, REMOVING AND INSTALLING .
- Mount tightening specifications. Refer to Fig 1.
- High-Voltage Charge Door Lock 1 Adjuster -F496-
- Removing and Installing. Refer to High-Voltage Charge Door Lock 1 Adjuster -F496-, REMOVING AND INSTALLING .
- Door Control Modules
- Driver Door Control Module -J386-, Front Passenger Door Control Module -J387-
- Door Control Module, Removing and Installing. Refer to Driver Door Control Module -J386- AND Front Passenger Door Control Module -J387-, REMOVING AND INSTALLING .
- Driver Side Rear Door Control Module -J926-, Passenger Side Rear Door Control Module -J927-
- Rear Door Control Module, Removing and Installing. Refer to Left Rear Door Control Module -J388- AND Right Rear Door Control Module -J389-, REMOVING AND INSTALLING .
- Vehicle Electrical System Control Module -J519-
- Component Location Overview. Refer to OVERVIEW - CONTROL MODULES / VEHICLE ELECTRICAL SYSTEM CONTROL MODULE -J519-, REMOVING AND INSTALLING .
Tightening Specifications for Comfort System Central Control ModuleJ393 Mount
-- Tighten the nuts -arrows- to 6.5 Nm.
