ADJUSTER FOR Laser Distance Regulation Control Module -J1122-, REMOVING AND INSTALLING: Removing

Courtesy of AUDI OF AMERICA, LLC

-- Remove the laser distance regulation control module. Refer to Laser Distance Regulation Control Module -J1122-, REMOVING AND INSTALLING .

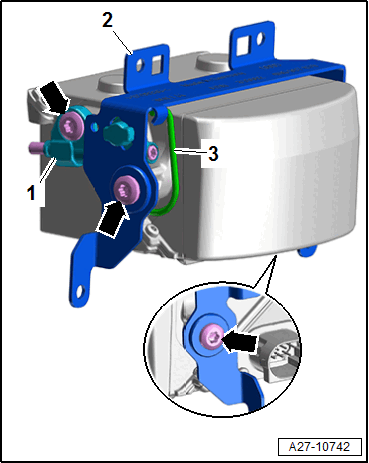

-- Remove the screws -arrows-.

-- Remove the bracket -2- with the adjuster -1- ; the spring -3- is disengaged while doing so.

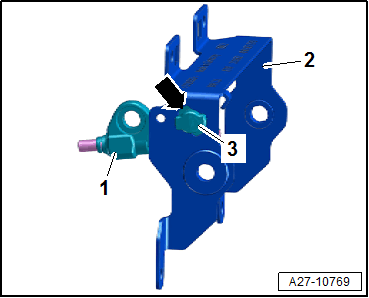

-- Turn the adjuster -1- until the opening -arrow- and the locking mechanism -3- align.

Courtesy of AUDI OF AMERICA, LLC

-- Remove the adjuster from the bracket -2-.
