Night Vision System Control Module, Removing And Installing, From 11/7/2016: Removing

-- Switch off the ignition and all electrical equipment. Set the ignition key outside of the vehicle.

-- Remove the left front seat. Refer to FRONT SEAT, REMOVING AND INSTALLING .

-- Lift the carpet and push aside.

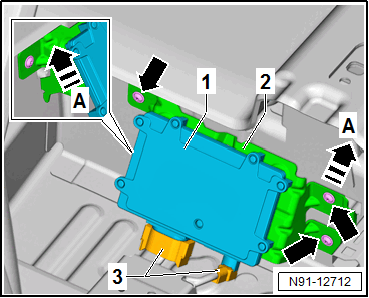

-- Remove the bolts -arrows-.

Courtesy of AUDI OF AMERICA, LLC

-- Release and disconnect the connectors -3-.

-- Q7 e-tron: detach the wire clip from the tab.

-- Disengage the Night Vision System Control Module -J853- -1- with the bracket -2- in the direction of -arrow A- and remove it.

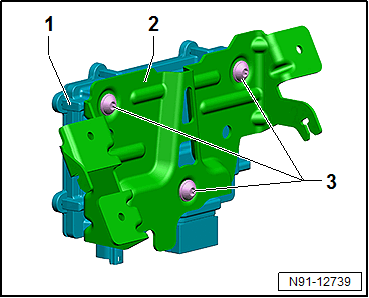

-- Remove the bolts -3-.

Courtesy of AUDI OF AMERICA, LLC

-- Remove the Night Vision System Control Module -J853- -1- from the bracket -2-.
