Engine Sound Generator Control Module -J943-, Connector Views

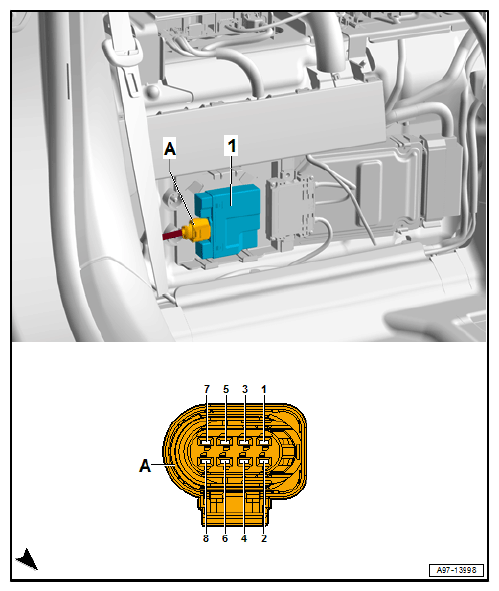

8-PIN CONNECTOR -T8AE-
Engine Sound Generator Control Module -J943-
| T8AE (A) | Designation |
|---|---|
| 1 | CAN-Bus powertrain, Low to B391 Powertrain CAN-Bus Low connection 2 (in main wiring harness) |
| 2 | Terminal 31, to 35 Ground Connection (below front passenger's seat) |
| 3 | CAN-Bus powertrain, High to B384 Powertrain CAN-Bus High connection 2 (in main wiring harness) |
| 4 | Terminal 15, from Fuse Carrier 1 ST1 in Fuse Panel C SC |
| 5 | Suppressor Filter C10 |
| 6 | Suppressor Filter C10 |
| 7 | Suppressor Filter C10 |
| 8 | Suppressor Filter C10 |
