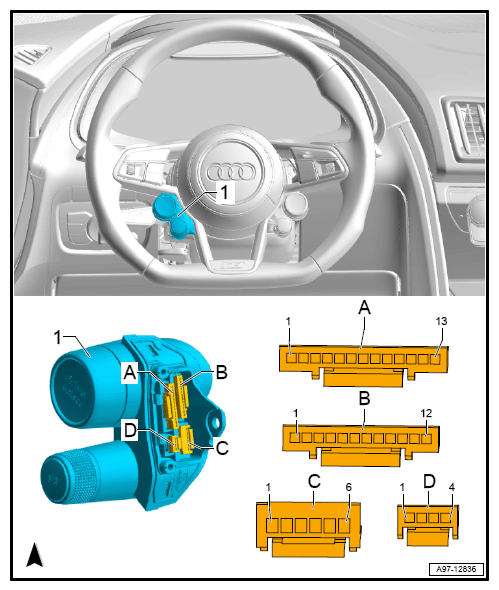

Multi-Function Steering Wheel Control Module -J453-, Connector Views
6-PIN CONNECTOR -T6AG-
Courtesy of AUDI
T6AG (C)
Designation
1
LIN-Bus, from Spiral Spring F350
2
Terminal 30, from Spiral Spring F350
3
Terminal 31, from Spiral Spring F350
4
Signal Horn Activation H
5
Tiptronic Switch, to Spiral Spring F350
6
Tiptronic Switch, to Spiral Spring F350
