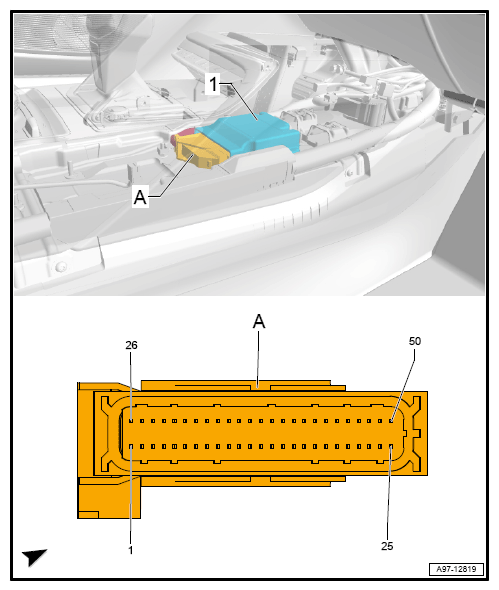

Sensor Electronics Control Module -J849-, Connector Views

50-PIN CONNECTOR -T50A-

Courtesy of AUDI

T50A (A)	Designation
1
2
3	Terminal 15, from Fuse Carrier 1 ST1 in Fuse Panel C SC
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19	Flex Ray-Bus, from Data Bus On Board Diagnostic Interface J533
20	Flex Ray-Bus, from Data Bus On Board Diagnostic Interface J533
21
22
23
24
25
26	Terminal 31, to 687 Ground Connection 1 (on Center Tunnel)
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
