Vehicle Positioning System Interface Control Module -J843-, Connector Views

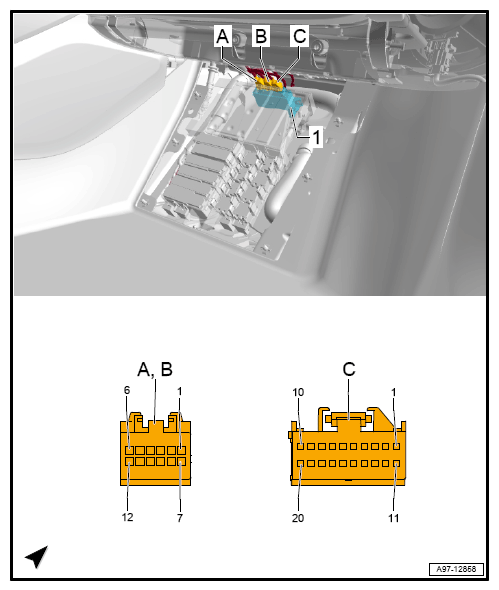

12-PIN CONNECTOR -T12B-
| T12B (B) | Designation |
|---|---|
| 1 | |
| 2 | |
| 3 | Terminal 30, from Fuse Carrier 5 ST5 in Fuse Panel C SC |
| 4 | |
| 5 | |
| 6 | Terminal 31, to 751 Ground Connection 2 (on right A-pillar) |
| 7 | Comfort System CAN-Bus High, to B398 Comfort System CAN-Bus High Connection 2 (in main wiring harness) |
| 8 | Comfort System CAN-Bus Low, to B407 Comfort System CAN-Bus Low Connection 2 (in main wiring harness) |
| 9 | |
| 10 | |
| 11 | |
| 12 |
