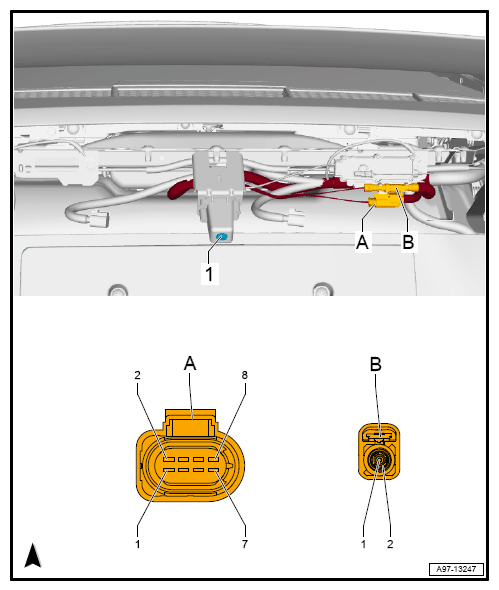

Rear View Camera System Control Module -J772-, Connector Views

8-PIN CONNECTOR -T8AB-

Courtesy of AUDI

T8AB (A)	Designation
1	Terminal 15, from Fuse Carrier 2ST2 in Fuse Panel C SC
2
3
4	Extended System CAN-Bus High, to B108 CAN-Bus Extended High Connection 1 (in main wiring harness)
5	Terminal 31, to 626 Right tail lamp ground connection
6
7
8	Extended System CAN-Bus Low, to B109 CAN-Bus Extended Low Connection 1 (in main wiring harness)
