Rearview Camera System Control Module -J772- REMOVING AND INSTALLING, THROUGH MY 2016: Removing
-- Turn off the ignition and all electrical equipment and remove the ignition key.
-- Remove the right luggage compartment side trim panel. Refer to LUGGAGE COMPARTMENT SIDE TRIM PANEL, REMOVING AND INSTALLING .
The bracket must be removed first in order to be able to remove the Rearview Camera System Control Module -J772-. It is attached with screws to the relay and fuse panel inside the luggage compartment on the right side. The relay and relay panel in the luggage compartment on the right side must first be removed. Refer to LUGGAGE COMPARTMENT SIDE TRIM PANEL, REMOVING AND INSTALLING .
Removing The Bracket
-- Unlock and disconnect all of the connectors from the control modules.

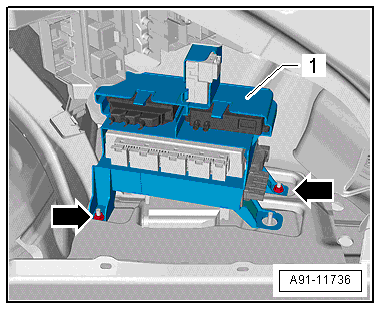

-- Remove the nuts -arrows- and remove the bracket -1- along with the control modules from the luggage compartment recess.

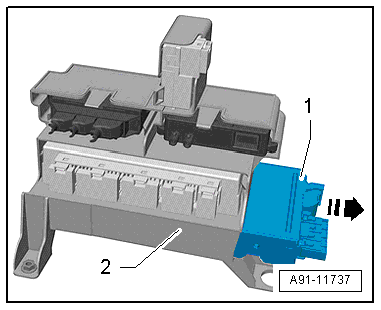

The Rearview Camera System Control Module -J772- -1- is only clipped into the bracket -2-.
-- Release and disconnect the connectors from the Rearview Camera System Control Module -J772- -1-.
-- Press the retainer downward and remove the Rearview Camera System Control Module -J772- -1- from the bracket -2-.
