Component Location Overview - Sound System, Sound Amplifier, Microphones, Bang & OLUFSEN, Through My 2014

Courtesy of AUDI OF AMERICA, LLC

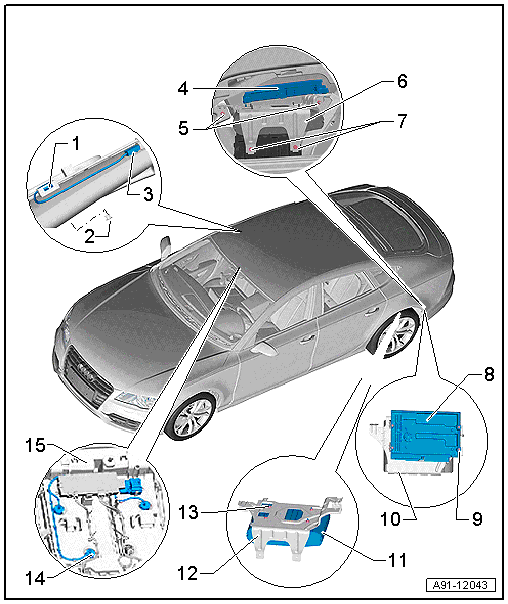

1. ANC Microphone with Retaining Plate
   • Quantity: 4
   • Overview. Refer to COMPONENT LOCATION OVERVIEW - ANC MICROPHONES .
2. Trim
   • Quantity: 4
3. Wiring Harness Coupling
   • Quantity: 4
   • Overview. Refer to COMPONENT LOCATION OVERVIEW - ANC MICROPHONES .
4. Digital Sound System Control Module -J525-
   • Connector assignment Digital Sound System Control Module -J525-, BANG & OLUFSEN, THROUGH MY 2014 .
   • Removing and installing. Refer to Digital Sound System Control Module -J525-, REMOVING AND INSTALLING, BANG & OLUFSEN, THROUGH MY 2014 .
5. Nut
   • 5 Nm
   • Quantity: 2
6. Bracket
7. Screw
   • 4 Nm
   • Quantity: 2
8. Digital Sound System Control Module -J525-
9. Screw
   • 4 Nm
   • Quantity: 4
10. Bracket
11. Digital Sound System Control Module 2 -J787-
    • Connector assignment Digital Sound System Control Module 2 -J787-, BANG & OLUFSEN, THROUGH MY 2014 .
    • Removing and installing. Refer to Digital Sound System Control Module 2 -J787-, REMOVING AND INSTALLING, BANG & OLUFSEN, THROUGH MY 2014 .
12. Bracket
13. Nut
    • 4 Nm
    • Quantity: 4
14. Interior Microphone -R74-
    • Overview. Refer to OVERVIEW - MICROPHONE UNIT .
15. Front Interior Lamp -W1-
    • With Microphone Unit in Front Roof Module - R164-
    • Removing and installing. Refer to CONTROLS . .
